Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled

Chiny Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled dostawca
Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled dostawca Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled dostawca Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled dostawca Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled dostawca Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled dostawca Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled dostawca Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled dostawca Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled dostawca

Duży Obraz :  Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled

Szczegóły Produktu:

Place of Origin: Ruian
Nazwa handlowa: shelly
Orzecznictwo: CE
Model Number: YL-600

Zapłata:

Minimum Order Quantity: 1set
Packaging Details: Export wooden case
Delivery Time: 30 working days
Contact Now
Szczegółowy opis produktu
Width: 600-1000mm Speed: 10-200 pcs/minute
Material: PE Capacity: controlled by computer
Color: as painting Weight: 1800kgs

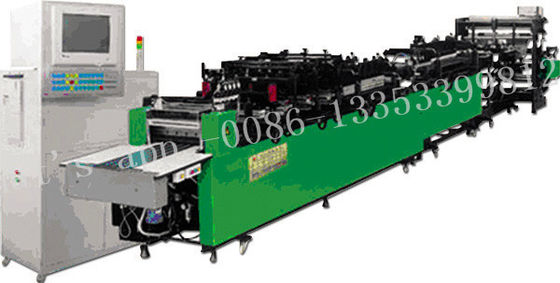

Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled

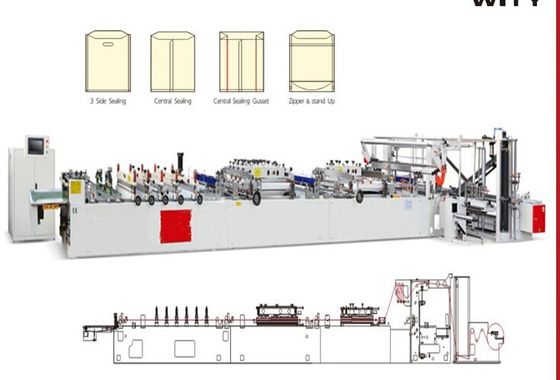

HEAVY DUTY MULTI-FUNCTION LAMINATED BAG MAKING MACHINE+SINGLE FILM BOTTOM FOLDED

New design for producing America laminated bag (sigle sheet folded 3 side sealing bag stand up pouchand zipper bag),also can produce PET food bag which is popular from America.


Features:

1) Folding,punching, bottom gusset and sealing automatic design.
2) Newly design feeding structure, hig speed feeding no shake.
3) Special design bottom gusset device, easy to operate.
4) Double layers  unwinding design, suitable for multi-function laminated bags.
5) Newly design zipper and stand up device



Specifications:


Model

400

500

600

Width of unwinding

800mm

1000mm

1200mm

Bag making length

70-380mm*N(N6)

70-380mm*N(N6)

70-380mm*N(N6)

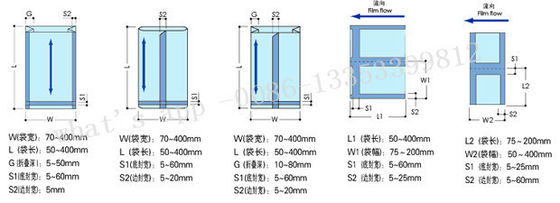

Bag making width

70-380mm

70-480mm

70-580mm

Speed

40-150pcs/min

Set film dragging speed

35m/min

35m/min

30m/min

Total power

38kw

43kw

48kw

Weight

3900kg

4100kg

4400kg

Dimension LXWXH

12300*1750*1800mm

12300*1950*1900mm

12300*2050*2000mm



Main device list:


Components Name

Name of  accessory

Type

Quantity

Provider

Traction Parts

Feeding servo motor

1.5kw

1 pcs

Yaskawa -Japan





1KW

1 pcs







2KW

1 PCS





Pneumatic Components



several

SHANKO Taiwan

Main transmission

reducer

1:10

1 set

ZHIBAO- Taiwan



inverter

2.2 KW

1 set

Yaskawa-JAPAN

Feeding device

inverter

0.75KW

1 set

Yaskawa-JAPAN

Controlled device

PLC



1 set

Panasonic-Japan



display

10.4 inch

1 set

Weinview-Japan



Photocell



2pcs

KONTEC-TAIWAN



Solid State Relay



22 pcs

FOTEK from Taiwan



Magnetic powder brakes

2.5 kg, 0.25kg

2 sets

Ruian China



EPC

Double photoelectric

1 set

 China



Photocell



1 pcs

Kontec-Twian




Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled


Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled
