Szczegóły Produktu:
Zapłata:
|
| product name: | coffee granule stick packing machine | application: | granule, like 3in1 coffee |
|---|---|---|---|
| driven type: | electric and pneumatic | made of: | SUS 304 |
| control way: | plc | featrue: | volumetric cups to measure |
| measurement range: | from 1 to 30 grams | operating language: | English and Chinese |
| bag shape: | stick shape; back side sealing; | capacity: | 30-45 bags per minute per lane * lanes quantity |
| High Light: | coffee powder Packing Machine,milk powder Packing Machine |
||

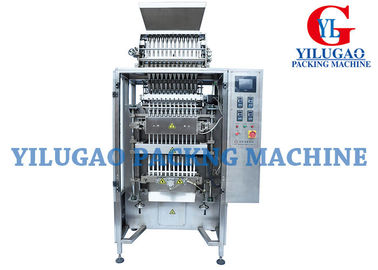

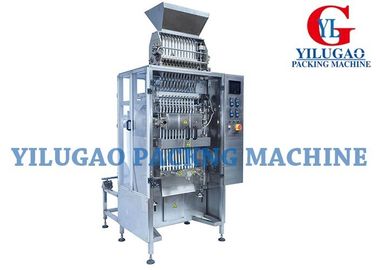

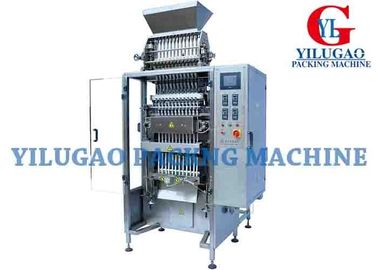

Multi-line Coffee Granule Stick Packing Machine
I. : Main feature:
This model adopts advanced Mitsubishi PLC control system and easy to maintain and operate. It can automatically finish the process, such as filling, measurement, bag making, sealing, cutting, date coding, counting.
II.: Specifications:
|
Packaging type |
Plastic stick shape bag/ back side sealing; |
|
Driven Type |
Pneumatic |
|
Measurement accuracy |
<= +- 1% |
|
Lanes quantity |
2 to 12 lanes according to the film width. |
|
Machine made of |
SUS 304 (for parts contacted material) |
|
Packaging material |
Laminated roll film |
|
Electric voltage |
380V |
|
Measurement device |
Volumetric cups of groups |
|
Machine size(estimated) |
According to the detailed design. |
|
Date coding |
Ribbon printer(for chosen) |
III.: Description:
1. Sealing type: back sealing packing method.
2. Operation: packing running data and adjustment are directly displayed on the display. The user can directly operate it on the displayer.
3. Function: making bag, metering, filling, sealing, cutting, counting and printing batch number.
4. Body material: 304 stainless steel.
5. Filling type: measurement volumetric cups
6. This machine can finish measuring, pulling, feeding, forming, cutting automatically.
7. Chinese-English operating screen display, easy operation and maintenance.
8. Mitsubishi PLC control system insure steady working conditions, and available to adjust any parameter without stopping the machine.
9. Adopt step motor to pull film, more accurate.
10. Independent temperature control system, precision±1 degree.
11. Independent control of horizontal / longitudinal temperature, to ensure a good fit of various kinds of complex film.
12. Automatic alarm protects system, to save the waste into minimum limited.
IV.: Applications:
|
Applicable product |
Coffee, granule food, sugar, salt, spice, and so on. |
|
Applicable field |
Food, daily consumption, medicine, chemicals… |
V.:How to choose right machine?
Please tell us following points to choose a right model packing machine:
1. What product will you pack?
2. How many gram and volume in each bag?
3. What bag shape you want to get?
4. What is bag width and bag length?
5. What bag material do you want to use?
