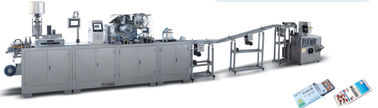

Fully Automatic Blister Cartoning Packaging Production Line 2.6kw 380V 50 Hz

Fully Automatic Blister Cartoning Packaging Production Line 2.6kw 380V 50 Hz
Fully Automatic Blister Cartoning Packaging Production Line 2.6kw 380V 50 Hz

Duży Obraz :  Fully Automatic Blister Cartoning Packaging Production Line 2.6kw 380V 50 Hz

Szczegóły Produktu:
Place of Origin: Zhejiang,China
Nazwa handlowa: Sanhuan
Orzecznictwo: CE/ISO
Model Number: DPP-250G/DXH-100
Zapłata:
Minimum Order Quantity: 1SET
Cena: USD110000
Packaging Details: Plywood case for export transportation
Delivery Time: 60DAYS
Payment Terms: TT,LC
Supply Ability: 1SET/MONTH
Szczegółowy opis produktu
Delivery time: 60days Orzecznictwo: CE/ISO
Application: Pharamaceutical industry
High Light:

Automatic Packaging Machinery

,

industrial packaging systems

Fully Automatic Blister Packing machine and Cartoning Machine Packaging Production Line



Description of Blister Packing Machine:

* Adjustable stroke: That can change the sheet size freely and suitable for the production of various kinds of specifications.
* Plate-type construction: Blister Packing Machine is suitable for packing the matter of any shape such as the special matters of square, triangle and oval shape etc.
* Positive pressing formation: That makes the bubble, cap wall uniform, stiff and smooth and makes the packing finished products more beautiful.
* Shaping, feeding, heat-sealing, pressing, lot number printing and cutting can be completed automatically.
* Material recovery device: It can automatically recover a whole roll of waste material.




Applications:



It is suitable for the combined sealing packing of the bubble-cap Al-plastic for capsules, tablets, injectors, sweets, hardware and other matters in the pharmaceutical factory, hospital, food and electronic industries.





* Main Technical Datas:



Blanking Frequency

20-40 Times/min

Layout Dimensions Series

57*80mm

Adjustable range of stoke

40-110mm (Control freely

Air compressor

≥ 0.15 m3/min

Total Power

2.6 kw

Rated Frequency

50 Hz

Rated Power Supply

AC380V

Weight

900kg

Overall Dimension

L × W × H   2400 × 710 × 1360mm





Quick Detail:



The machine suitable for automatic feeding and packing products such as ALU-PVC Blister, bottle, cosmetics, commodity, hardware, card, and some other similar products into the carton. Adjust automatic feeding structure conveniently, randomly setup the quantity of blisters on touch screen. Online products feeding and detecting, leaflet folding(1-4 folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing lot number, sealing carton with tuck-in or hot melt glue device. Automatic reject lacking of package products and leaflet and convey the finished products. The machine can be used single or joint with pillow-type packing machine or other equipment for a production line.


Features:


Adopt International famours brand of electrical component such as PLC, Frequency inverters, etc.
Adopt Human-machine operation system.
Servo feeding suitable for different specification Alu-PVC blister. Automatically stop when machine is overloaded.
Autoamatically reject lacking of package products and leaflet.
Automatically display trouble, alarm and counting.
Stable performance, easy operation.




Main Technological parameter



Model

DXH-100

Speed

50~100boxes/min

Box

Quality requirement

250~350g/m 2 (according to the dimensions to confrim)

Dimension(L × W × H)

(70-180)mm × (35-85)mm × (14-50)mm

Leaflet

Quality requirement

60-70 g/m 2

Unfolded leaflet Specification

(80-250)mm × (90-170)mm

Folded Leaflet Specification

1-4 fold

Compressed air

Working pressure

≥ 0.6mpa



Air consumption

20m 3 /h

Power Supply

380V 50HZ

Motor power

0.75kw

Machine Dimension(L × W × H)

3100 × 1100 × 1550MM

Weight

1400kg
