Food Industrial Bag Filter For Water Treatment , Stainless Steel Housing Sock

Chiny Food Industrial Bag Filter For Water Treatment , Stainless Steel Housing Sock dostawca
Food Industrial Bag Filter For Water Treatment , Stainless Steel Housing Sock dostawca Food Industrial Bag Filter For Water Treatment , Stainless Steel Housing Sock dostawca

Duży Obraz :  Food Industrial Bag Filter For Water Treatment , Stainless Steel Housing Sock

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: YLD
Orzecznictwo: CE/ SGS
Model Number: YLD-22-1500

Zapłata:

Minimum Order Quantity: 1 set
Cena: negotiation
Packaging Details: With plywood case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union or L/C
Supply Ability: 500 units per month
Contact Now
Szczegółowy opis produktu
Product Name: Bag filter Application: Drinking water
Inlet & outlet diameter: 6 inch Flow rate: 800 m3/Hr
Material: SUS 304/316/316L Connection mode: Flange
Working temperature: 0~250 ℃ Filtration degree: 0.5~1000 micron
Working pressure: 0.6Mpa

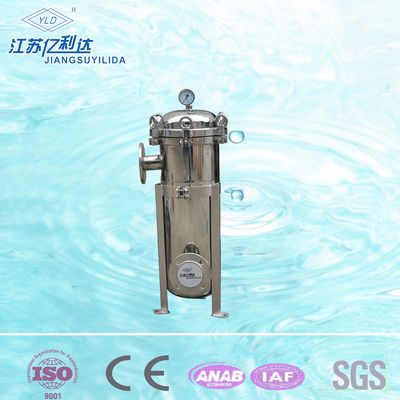

Food Industrial Bag Filter For Water Treatment , Stainless Steel Housing Sock



Structure and working principle

Bag type filter is a pressure filtration device, which is mainly consists of filtration cylinder, cylinder

cover and fast open structure, stainless steel strengthen filtration bag, and etc. When filtrate flows

from side entrance of filter shell into the pipe bag, the bag itself is installed inside the enhanced

basket, liquid penetrates bag with required fineness grade that can be provided with qualified filtrate, impurities and particles were intercepted by bag. It is very easy to replace the filter-bags, there is

hardly no material to be consumed.



Specifications: (The practical dimension could be customized )


Quantity of the bags

Wall Thickness

Bag Specifications

Filtration Area
(M2)

Flow Rate (T)

Diameter

1

1.5

102*410

0.13

12

25

1

1.5

102*810

0.26

15

25

1

1.5

180*410

0.23

20

50

1

1.5

180*410

0.46

40

65

2

2

180*810



50-80

80

3

3

180*810

1.38

90

100

4

3

180*810

1.8

120

100

5

3

180*810

2

150

125

6

3

180*810

2.3

180

150

8

3

180*810

2.5

240

150

9

4

180*810

2.76

360

200



Features:

01.Small probability for side-bag leakage , which effectively guarantee the filtering quality.

02.Bag type filter can bear greater working pressure, it is of small pressure loss,low operation cost

 and obvious

energy  saving .

03.Accuracy of filtration bag increased continuously, it could reach 0.5 μm at most.

04.Bag type filter large handling capacity, small volume, containing a large quantity of pollutants.

05.Based on the working principle and structure of Bag type filtering system,which is convenient to

replace the

filter bag and without cleaning,and time saving and labor saving.

06.Filtration bag could be use repeated after cleaning to save cost.

07.bag filter application scope is broad, with flexible operation and multiple installation.

Description:

- ASTM SS304 or SS316 stainless steel iron construction for best chemical compatibility and corrosion resistance.
- Two styles of surface finish (both inside and outside): Mirror-polish or Bead blasted
- Patent design to prevent bypass leakage.
- Multi-choice of seal material to meet different needs: Silicon rubber, EPDM rubber, Viton rubber;
- 150 PSI (1.0Mpa) pressure available
- Standardised flanges and threads: DIN, BSP, ANSI
- Micron Ratings: 1-100micron
- Custom designs available.

Accessories included: air release valve, pressure gauge and one 5 micron bag filter
Packaging: carton or wooden case


Applications:



1, nanofiltration (NF), ultrafiltration (UF), RO (RO), electrodialysis (EDI) system security filtering,

2, medicine injection, big transfusion, eye drops, Chinese herbal medicine, biological agents such as

filtering liquor extraction, purification and concentration,

3, electronics, microelectronics, semiconductor industry with high pure water pre filtering,

4, oilfield waterflooding, back to the boiler make-up water, chemical reagent, liquid organic products, high purity chemicals, strong medicine such as filtering,

5, drinking pure water, mineral water, juice, tea beverages, health drink filtering,

6, liquor, wine, beer, yellow wine and other ratafia filtering, pure draft beer aseptic filtration (replacing pasteurising);

7, production and living in wastewater treatment and water recycling process of pretreatment filter or

security filtering,

8 and other such as biological engineering, oil refining, printing and dyeing, textile industry of water and wastewater treatment, scientific experiment filtration and so on.



FAQ:

01. What is the capacity (m3/hour)you required for this equipment?
02. What is the material for this bag filter?
Stainless steel (SS304/SS316)?
03. What is the working pressure for it?
04. What is the filtration degree?
10 micron or 200 micron?


Details:

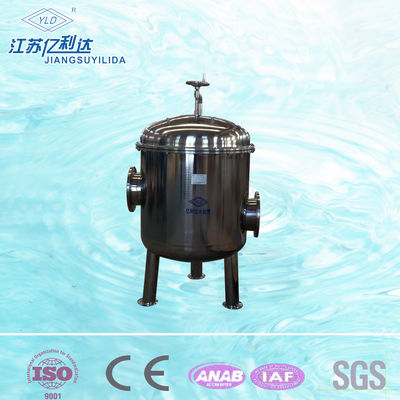

Food Industrial Bag Filter For Water Treatment , Stainless Steel Housing SockFood Industrial Bag Filter For Water Treatment , Stainless Steel Housing Sock
