Szczegóły Produktu:
Zapłata:
|
| Type: | Linear | Model Number: | LME20UU |
|---|---|---|---|
| Type of linear bearing: | Open,Flange, Rectangle | Vibration: | V1 V2 V3 |
| Clearance: | C0 C1 C2 C3 C4 C5 | Precision Rating: | P0 P6 |
| Nazwa handlowa: | OEM | Ball circuit: | 6 |
| Condition: | New and Original | Material: | GCR15 Chrome Steel |
| Inner diameter: | 20mm | Outer diameter: | 26mm |
| Length: | 36mm | ||
| High Light: | hiwin linear bearings,flanged linear bearings |
||

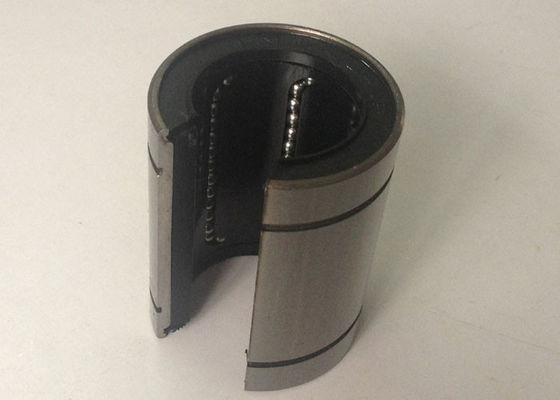

Rolamento Linear 20mm Open Linear Bearing For Skate Board , Stainless Steel Linear Bearing
1. Rolamento linear 20mm open linear bearing LME20UU
2, LM LME LMB KH series
3, Standard/antirust specification
4, Steel/resin/stainless retainer
5, OEM serive
6, Sample available
Rolamento linear 20mm open linear bearing LME20UU Introduction :
Main Material of slide bush :
Bearing body: GCr15
Bearing Retainer:steel
Ball: GCr15/100Cr6/SUJ2 ,440C ,Ceramic
Bearing steel liner: GCr15/100Cr6/SUJ2
Rolamento linear 20mm open linear bearing LME20UU bearings design :
Rolamento linear 20mm open linear bearing LME20UU Linear bearings model series :
|
Outerdiameter |
tolerance |
|
||||
|
Model uu |
dr |
D |
L |
C (N) |
C0 (N) |
|
|
LM 3 |
3 |
7 |
0 |
10 |
88.2 |
108 |
|
LM 4 |
4 |
8 |
12 |
88.2 |
127 |
|
|
LM 5 |
5 |
10 |
15 |
167 |
206 |
|
|
LM 6 |
6 |
12 |
0 |
19 |
206 |
265 |
|
LM 8S |
8 |
15 |
17 |
176 |
225 |
|
|
LM 8 |
8 |
15 |
24 |
265 |
402 |
|
|
LM 10 |
10 |
19 |
29 |
373 |
549 |
|
|
0 |
||||||
|
LM 12 |
12 |
21 |
30 |
412 |
598 |
|
|
LM 13 |
13 |
23 |
32 |
510 |
775 |
|
|
LM 16 |
16 |
28 |
37 |
775 |
1180 |
|
|
LM 20 |
20 |
32 |
0 |
42 |
863 |
1370 |
|
LM 25 |
25 |
40 |
59 |
980 |
1570 |
|
|
LM 30 |
30 |
45 |
64 |
1570 |
2750 |
|
|
LM 35 |
35 |
52 |
0 |
70 |
1670 |
3140 |
|
LM 38 |
38 |
57 |
76 |
2160 |
4020 |
|
|
LM 40 |
40 |
60 |
80 |
2160 |
4020 |
|
|
LM 50 |
50 |
80 |
100 |
3820 |
7940 |
|
|
LM 60 |
60 |
90 |
0 |
110 |
4710 |
10000 |
Linear motion bearing series
LM3 LM4 LM5UU LM6UU LM8UU LM10UU LM12UU LM13UU LM16UU LM20UU LM25UU LM30UU LM35UU LM40UU LM50UU LM60UU LM80UU LM100UU LM120UU LM150UU LME3 LME4 LME5UU LME8UU LME10UU LME12UU LME16UU LME20UU LME25UU LME30UU LME40UU LME50UU LME60UU LM3L LM4L LM5L LM6L LM8L LM10L LM12L LM13L LM16L LM18L LM20L LM25L LM30L LM35L LM40L LM50L LM60L LME6L LME12L LME16L LME20L LME25L LME30L LME40L LME50L LME60L
KH0622 KH0824 KH1026 KH1228 KH1428 KH1630 KH2030 KH2540 KH3050 KH4060 KH5070 ST 6 ST8 ST10 ST12 ST16 ST20 ST25 ST30 ST40 ST50 ST60 ST80 ST100 ST8B ST10B ST12B ST16B ST20B ST25B ST30B ST35B ST40B ST50B ST60B ST80B ST100B
LMlinear bearing: LM3UU,LM4UU,LM5UU,LM6UU,LM8UU,LM8S,LM10UU,LM12UU,LM13UU,LM16UU,LM20UU,LM25UU,LM30UU,LM35UU,LM40UU,LM50UU,LM60UU, LM80UU,LM100UU
LME linear bearing: LME3UU,LME4UU,LME5UU,LME6UU,LME8UU,LME8S,LME10UU,LME12UU,LME13UU, LME16UU,LME20UU,LME25UU,LME30UU,LME35UU,LME40UU,LME50UU,LME60UU, LME80UU,LME100UU
LMB linear bearing: LMB4UU,LMB6UU,LMB8UU,LMB10UU,LMB12UU,LMB16UU,LMB24UU,LMB32UU
LM Open Series linear bearing: LM10OPUU,LM12OPUU,LM13OPUU,LM16OPUU,LM20OPUU,LM25OPUU, LM3OOPU,LM35OPUU,LM40OPUU,LM50OPUU,LM60OPUU,LM80OPUU,LM100OPUU
KH type linear bearing: KH0622PP,KH0824PP,KH1026PP,KH1228PP,KH1630PP,KH2030PP, KH2540PP,KH3050PP,KH4060PP,KH5070PP
Stell Cage Linear Bearing: LM8GA,LM10GA,LM12GA,LM16GA,LM20GA,LM25GA,LM30GA,LM35GA,LM40GA,LM50GA,LM60GA
LMF6UU,LMF8UU,LMF10UU,LMF12UU,LMF13UU,LMF16UU,LMF20UU,LMF25UU,LMF30UU, LMF35UU,LMF40UU,LMF50UU,LMF60UU,LMF80UU,LMF100UU
LMK6UU,LMK8UU,LMK10UU,LMK12UU,LMK13UU,LMK16UU,LMK20UU,LMK25UU,LMK30UU,LMK35UU,LMK40UU,LMK50UU,LMK60UU,LMK80UU,LMK100UU
LMT6UU,LMT8UU,LMT10UU,LMT12UU,LMT13UU,LMT16UU,LMT20UU,LMT25UU,LMT30UU.
