Open 30304 Motor Single Row Tapered Roller Bearings With Nylon Cages

Chiny Open 30304 Motor Single Row Tapered Roller Bearings With Nylon Cages dostawca
Open 30304 Motor Single Row Tapered Roller Bearings With Nylon Cages dostawca Open 30304 Motor Single Row Tapered Roller Bearings With Nylon Cages dostawca Open 30304 Motor Single Row Tapered Roller Bearings With Nylon Cages dostawca

Duży Obraz :  Open 30304 Motor Single Row Tapered Roller Bearings With Nylon Cages

Szczegóły Produktu:

Place of Origin: China
Orzecznictwo: ISO9001, ISO14001
Model Number: Various standard are available

Zapłata:

Minimum Order Quantity: 10 Piece/Pieces
Cena: Negotiate
Packaging Details: Bulk single color box/tube/carton/pallet
Delivery Time: 30 days
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability: 5000 Piece/Pieces per Day
Contact Now
Szczegółowy opis produktu
Product name: Motor Roller Bearings Model No.: 30304 J2/Q
Dimension: 20*52*16.25mm No. of Row: Single row
Material: Gcr15SiMn Precision Rating: P6,P5





Open 30304 Motor Single Row Tapered Roller Bearings With Nylon Cages



hot sale 30304 J2/Q single row Tapered Roller Bearings



Model No.:

30304 J2/Q

Dimension:

20*52*16.25mm

Category:

Taper roller bearing

No. of Row :

Single row

Seal Type :

Open

Material:

bearing steel; chrome steel;stainless steel, (Gcr15 and Gcr15SiMn)

Cage:

Steel ,nylon ,brass ,bronze,etc

Clearance:

C0,C2,C3,C4,C5

Precision Rating:

 P0, P6,P5,P4,P2

Vabration:

Z1, Z2, Z3,Z4

Grease:

per your request, such as SRL, PS2, and etc

Package:

poly bag, box, carton or per your rquest

Certification:

ISO9001:2008, ISO14001

Delivery Date:

 within 15 days upon receipt of 30% deposit






Basic Tests:

 1.Assembly
 2.Windage test
 3.Cleaning
 4.Rotary test
 5.Greasing and gland
 6.Noise inspection
 7.Appearance inspection
 8.Rust prevention


Features of single row taper roller bearings:


Tapered roller bearings have tapered inner and outer ring raceways and tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis (fig 1) to provide true rolling and low friction. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle (α). The size of the angle is indicated by the calculation factor e († product tables): the larger the value of e, the larger the contact angle. A single row tapered roller bearing is typically adjusted against a second tapered roller bearing.
Single row tapered roller bearings are separable (fig 2), i.e. the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).



Advantanges:



1. Tapered Roller Bearings belong to separated bearing, constituted by inner ring, outer ring, rollers and cage;

2. Tapered Roller Bearings Withstand huge radial load and axial load, pass one-way axial load only;

3. The single row tapered roller bearings are used commonly.

Open 30304 Motor Single Row Tapered Roller Bearings With Nylon Cages        Open 30304 Motor Single Row Tapered Roller Bearings With Nylon Cages
                  fig 1                                                                                                                fig 2

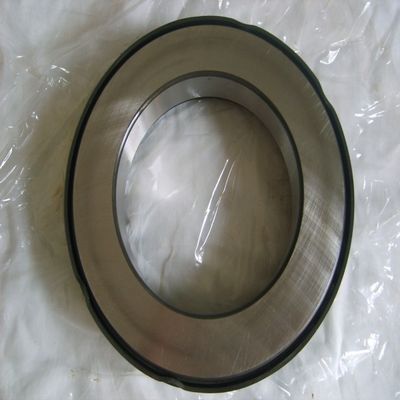

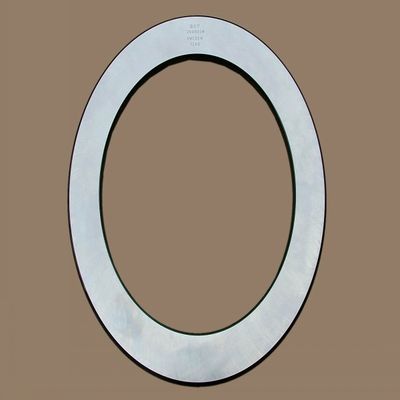

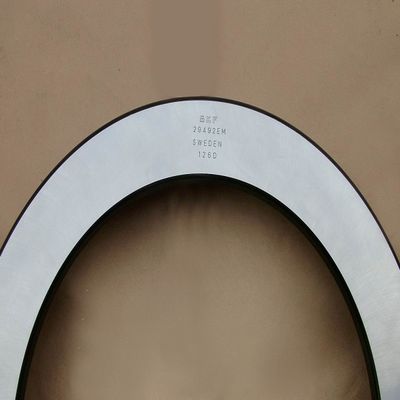

Pictures of single row taper roller bearings:



Open 30304 Motor Single Row Tapered Roller Bearings With Nylon Cages




Other types of single row taper roller bearings:



Model Boundary dimensions (mm) Basic load ratings (KN) Limiting speed (r/min)
d D T dyc_Cr stc_Cor Reference speed Limiting speed
LM 12748/710 21.43 45.237 15.494 27.5 31 11000 17000
M12649/610/Q 21.43 50.005 17.526 36.9 38 11000 16000
LM 12749/710/Q 21.986 45.237 15.494 27.5 31 11000 17000
320/22X 22 44 15 25.1 29 11000 15000
32005 X/Q 25 47 15 27 32.5 11000 14000
30205 J2/Q 25 52 16.25 30.8 33.5 10000 13000
32205 BJ2/Q 25 52 19.25 35.8 44 9500 13000
L 44643/610 25.4 50.292 14.224 26 30 10000 15000


Structures of taper roller bearings:


Open 30304 Motor Single Row Tapered Roller Bearings With Nylon Cages


Applications:



1) Tapered roller bearing are widely used in car: front-wheel, rear-wheel, transmission, differential pinion shaft. Machine tool spindles, construction machinery, large-scale agricultural machinery, railway vehicles, gear reduction.

2) And the rolling mill roll neck and deceleration devices.

3) Equipment, instrument, building machinery, rolling stock agricultural machinery.

4) And various specialized machineries.

Related Words: product-taper roller bearings, single row taper roller bearings, taper roller bearings.
